CrystalVolt – Solaron's new product

1st time in Armenia

Semi-transparent Solar Panel

PMax – custom
Size – custom
Transparency – custom

These solar panels can be integrated into buildings to give them a unique look, reduce direct sunlight to a certain extent and generate electricity at the same time.

Used for
Office spaces, agricultural activities, factories, parking lots, hospitals, airports, other commercial and non-commercial buildings.

SPECTRUM

NEW

Colored Facade Solar Panel Series

Pmax – 280 – 300 watt

Size – 1660 x 1002 x 40mm
Weight – 22kg
Installation angle – (75°–90°)

Violet/Grey/Orange colores are available

SLN-96 G1 Mono PERC - 515/520/525

SLN-96G1 Mono PERC-XXX is a solar module with 96 high efficiency PERC mono-crystalline solar cells. These modules can be used for ON-Grid and OFF-Grid solar applications.

Nominal Power (Pmax)515520525
Open Circuit Voltage (Voc)65.5065.5865.66
Short Circuit Voltage (Isc)9.9710.2110.45
Voltage Nominal Power (V mp)54.254.2854.35
Current Nominal Power (I mp)9.529.609.68
Maximum Operating Temp.-40°С +80°С-40°С +80°С-40°С +80°С
Maximum System Voltage1500 V1500 V1500 V
Maximum Series Fuse Rating20 A20 A20 A
Module Efficiency20.1%20.3%20.4%

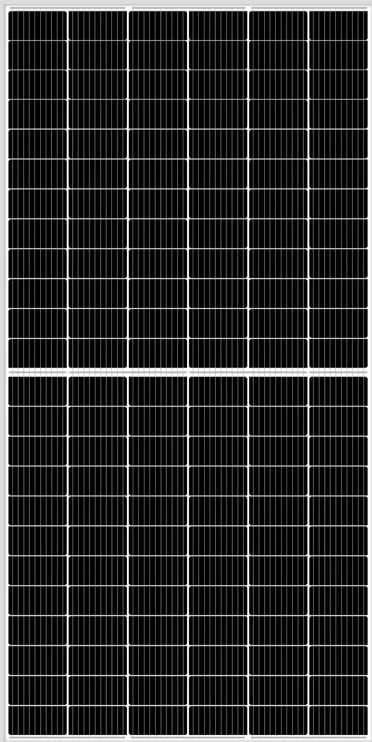

SLN-144 Half Cut M10 Mono PERC - 550

Excellent low irradiance performance. Resistance to power attenuation passed System Voltage durability test. Industry leading lowest thermal co-efficient of power Optimized electrical design and lower operating current for reduced hot spot loss and better temperature coefficient. Certified to withstand: wind load (2400 Pa) and snow load (5400 Pa). 100% triple EL test enabling remarkable reduction of hidden crack rate of Modules.
Nominal Power (Pmax)550
Open Circuit Voltage (Voc)49.60
Short Circuit Voltage (Isc)14.04
Voltage Nominal Power (V mp)40.83
Current Nominal Power (I mp)13.48
Maximum Operating Temp.-40°С +80°С
Maximum System Voltage1500 V
Maximum Series Fuse Rating20 A
Module Efficiency21.3%
